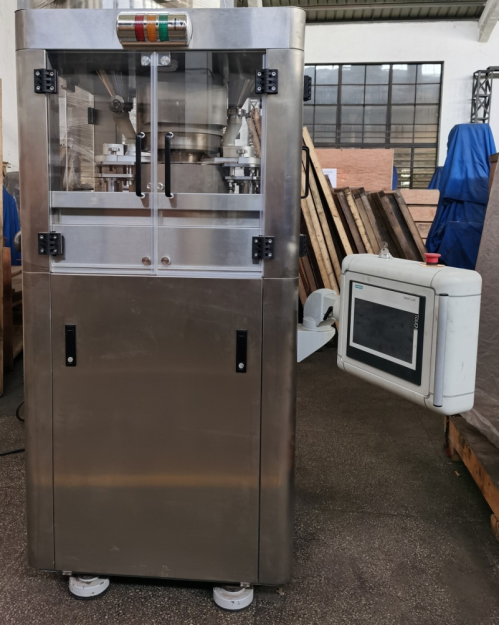

Tablet Press Machine, ZP252
It is a type of small output tablet press machine mainly suitable for use in R&D laboratories, which can be used for producing round or irregular tablets either single layer or double layers.
Specifications
| Model | ZP18 | ZP22 | ZP26 |
| Number of stations | 18 | 22 | 26 |
| Punches & Dies Standard | D | B | BB |
| Max. capacity (tablets/h) | 25920(single-layer) 17280(double-layer) | 31680(single-layer) 21120(double-layer) | 37440(single-layer) 24960(double-layer) |
| Max. main pressure(KN) | 60 | ||
| Max. pre-pressure (KN) | 10 | ||
| Max. diameter of tablet (mm) | 25 | 18 | 13 |
| Max. thickness of tablet (mm) | 6-7 | ||
| Max. filling depth (mm) | 18 | ||
| Max. Rotating speed (rpm) | 24 (single-layer tablet) 16(double-layer tablet) | ||
| Power of main motor (kW) | 3 | ||
| Overall dimensions (mm) | 1000*1160*1828 | ||
| Weight (Kg) | 1000 | ||
Main Features
- All parameters can be easily adjusted by the touch screen;
- Automatic sampling function for the first layer tablet;
- Meets GMP requirement;
- Double impeller forced feeder for single layer tablets, single impeller forced feeder for double layer tablets;
- Frequency control system adopted for main motor and feeding motor;

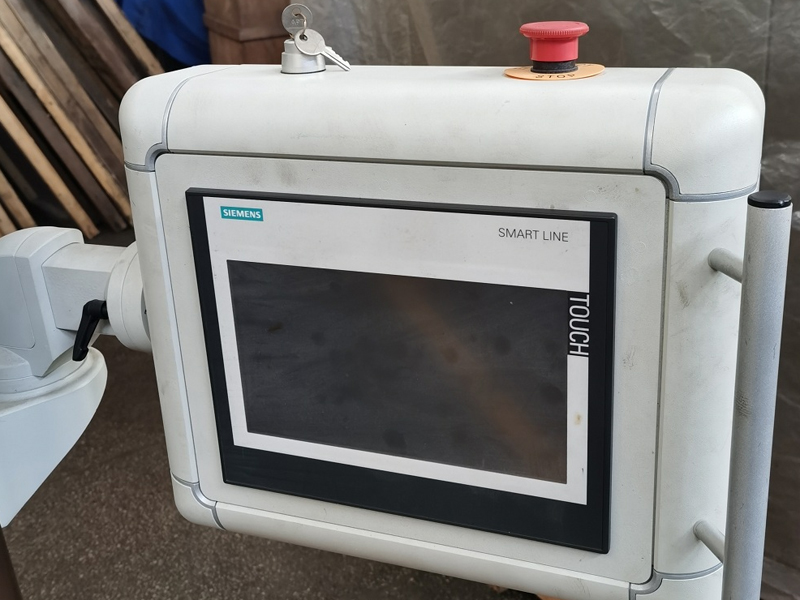

10’’ Touch Screen

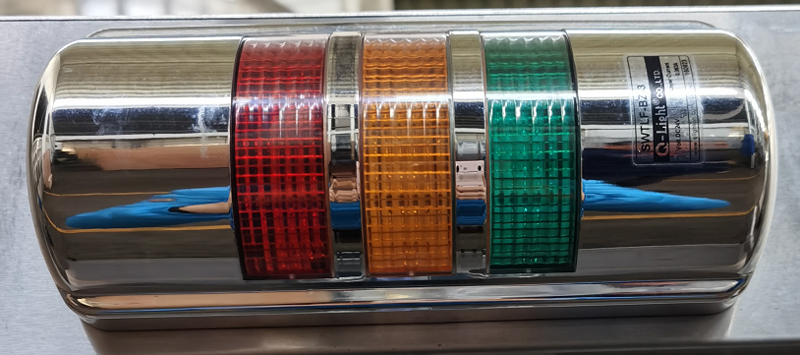

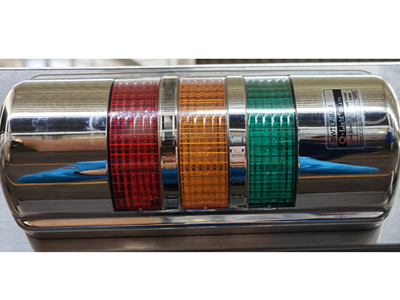

Alarm System

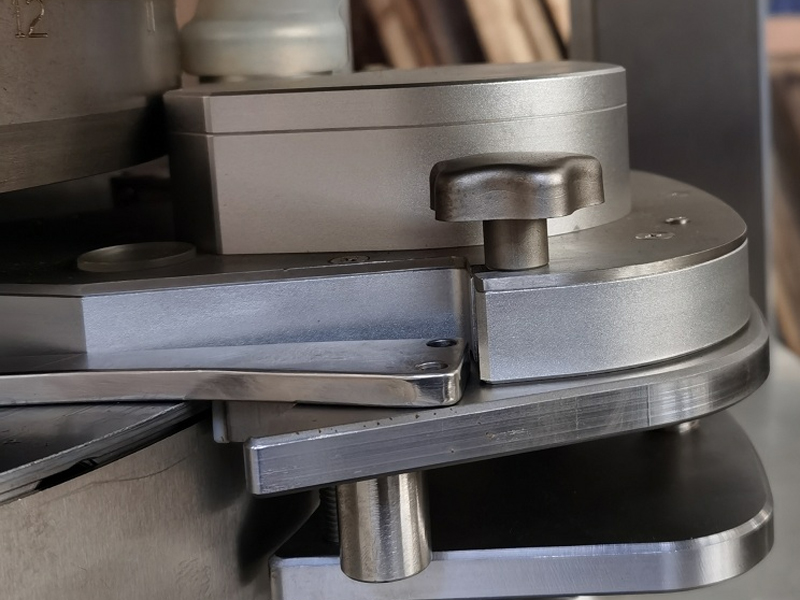

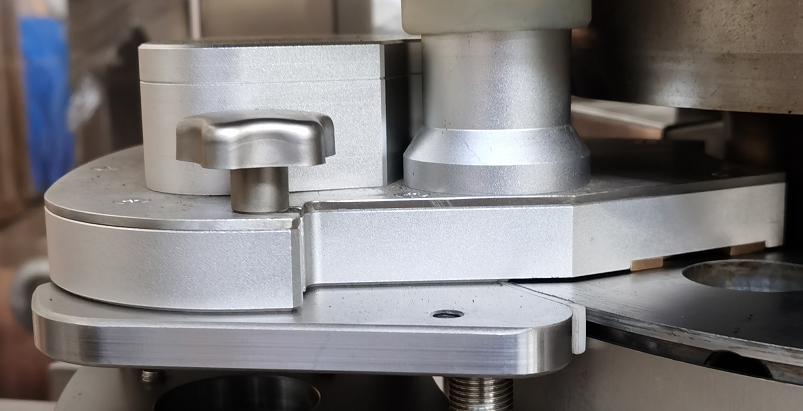

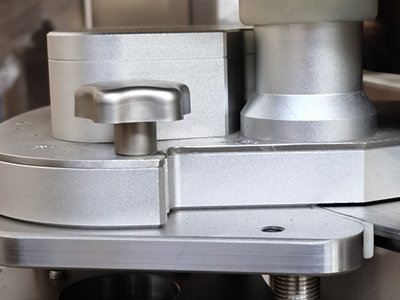

Force Feeder (Left)
Force Feeder (Right)

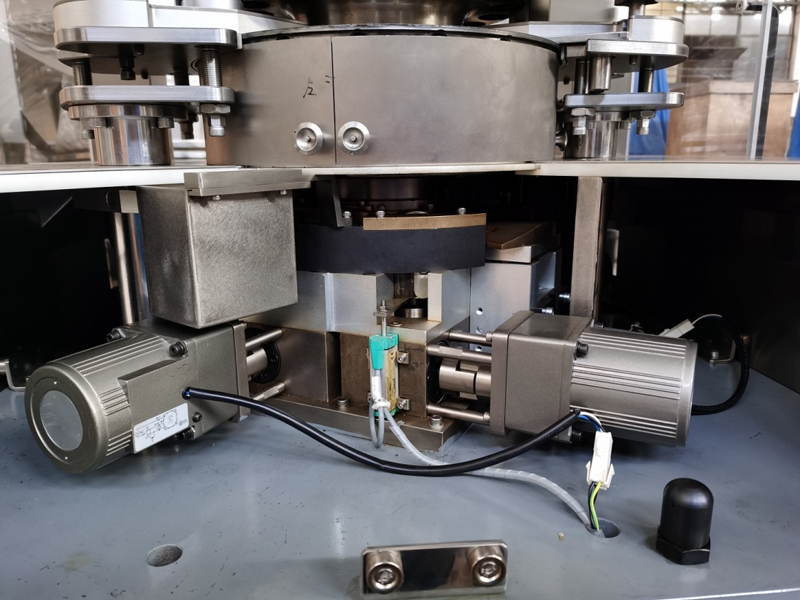

The thickness (filling)and hardness(pressure) is automatically controlled

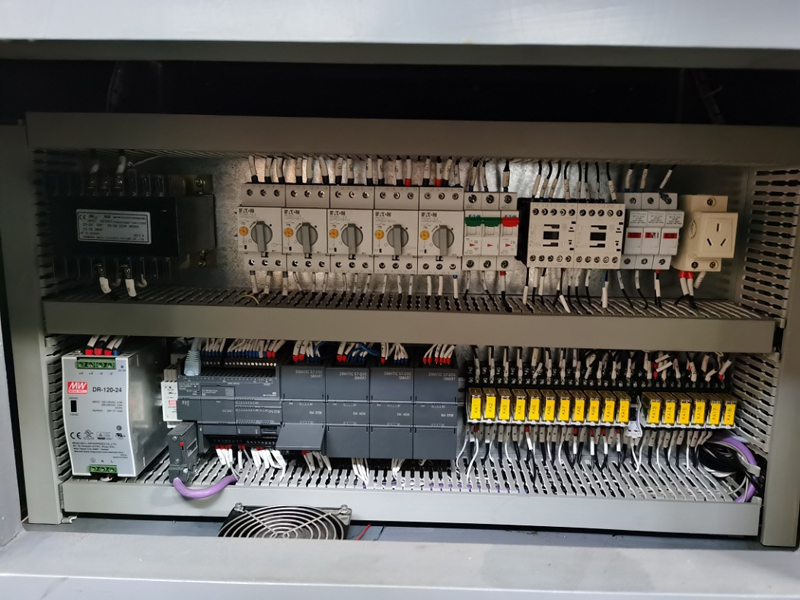

Electrical Parts

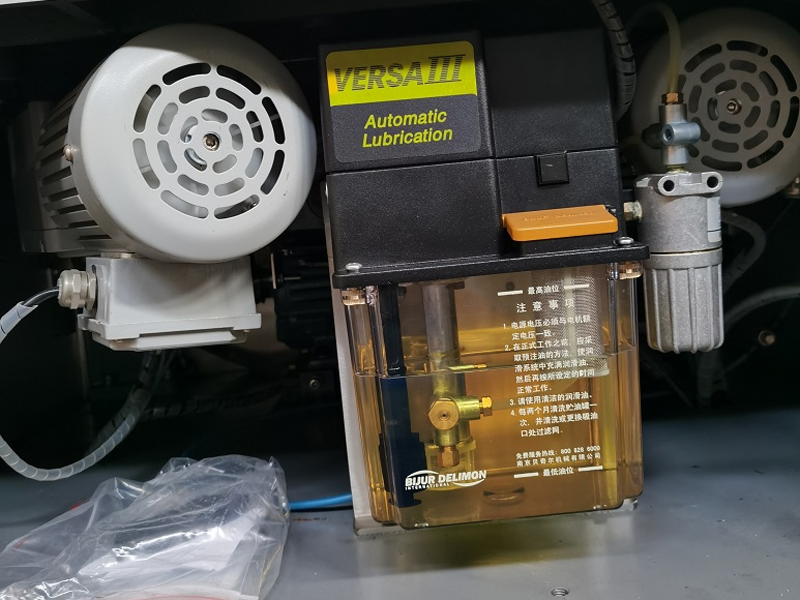

Automatic Lubrcation System

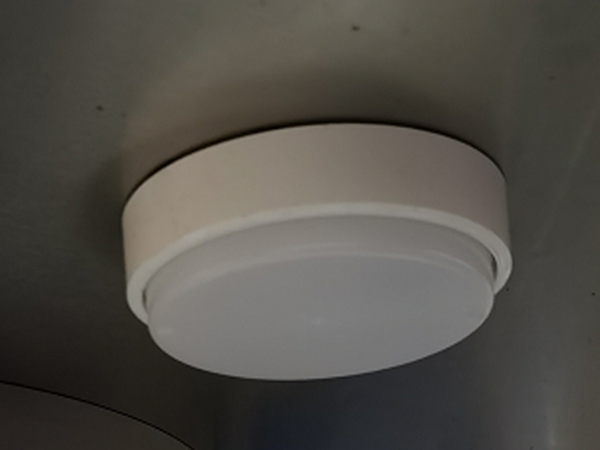

LED lamp is set up inside of machine

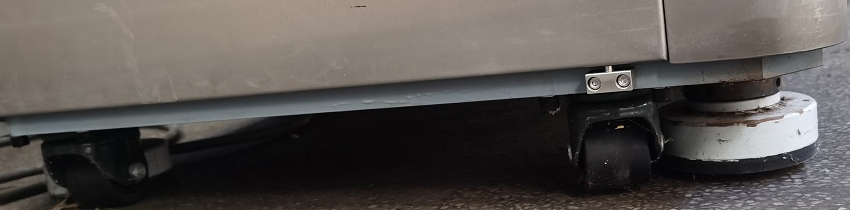

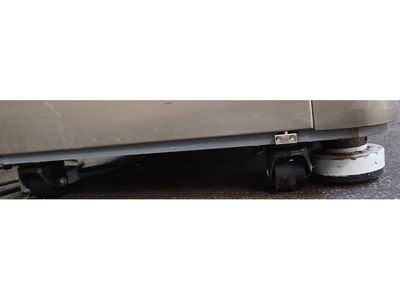

With moving wheel and Crash Pad

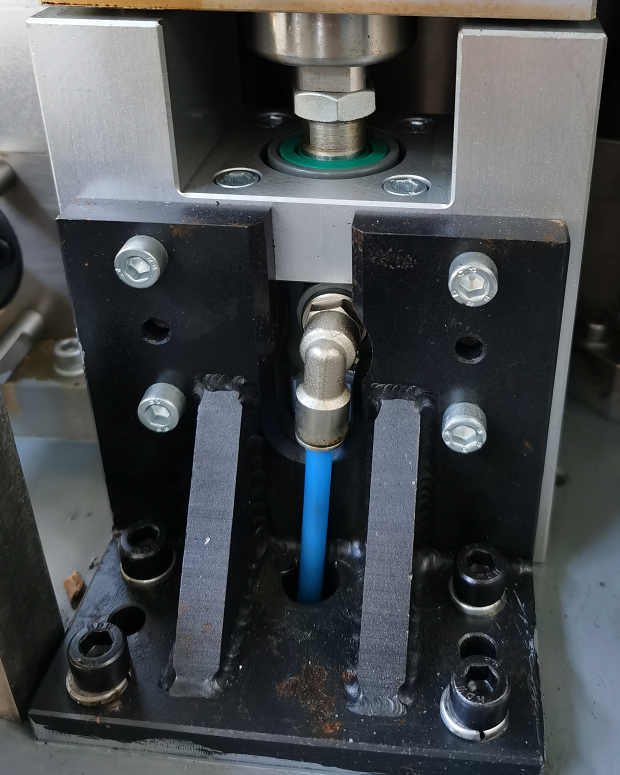

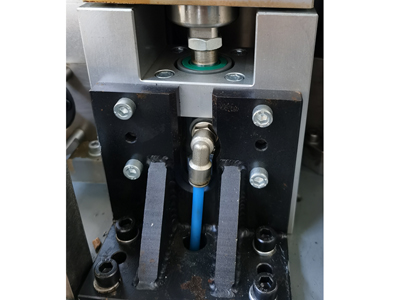

Air Cylinder for first-layer tablet

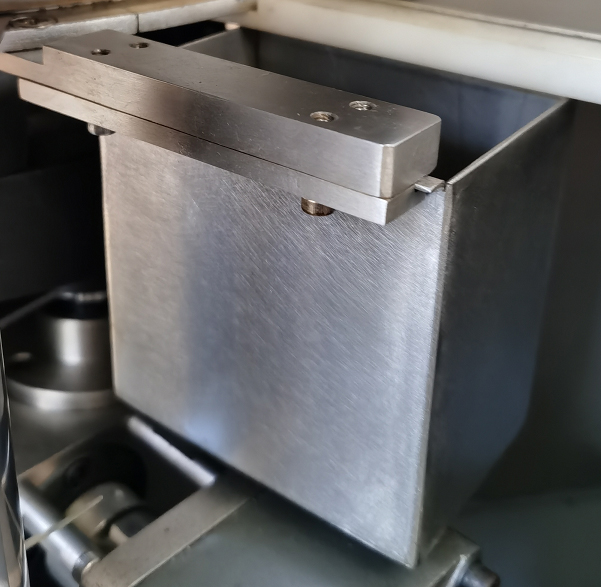

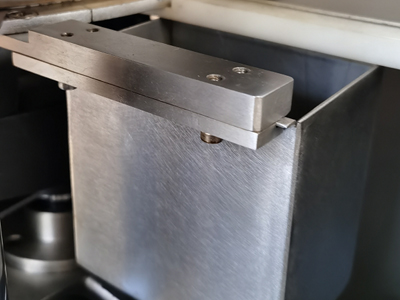

First-Layer Tablet outlet tank

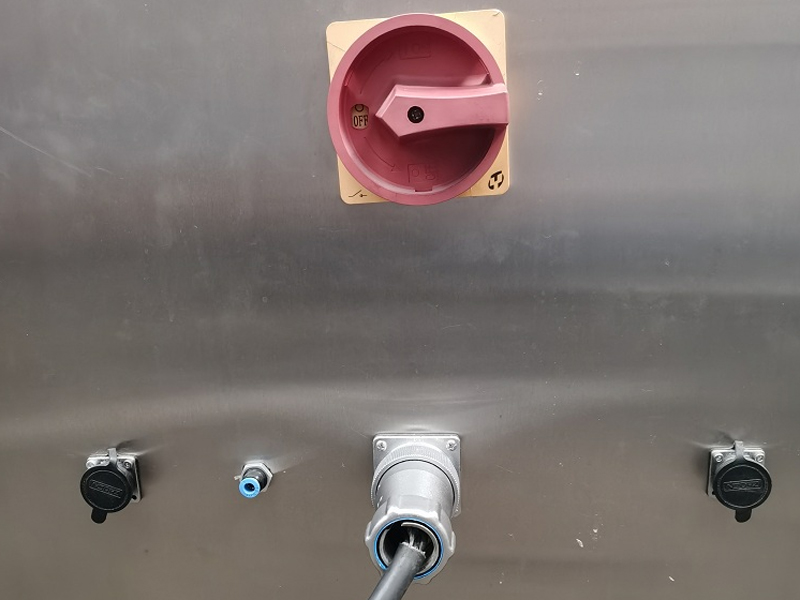

Main Power , Dust Collector , Tablet-Deduster and compressed Air
